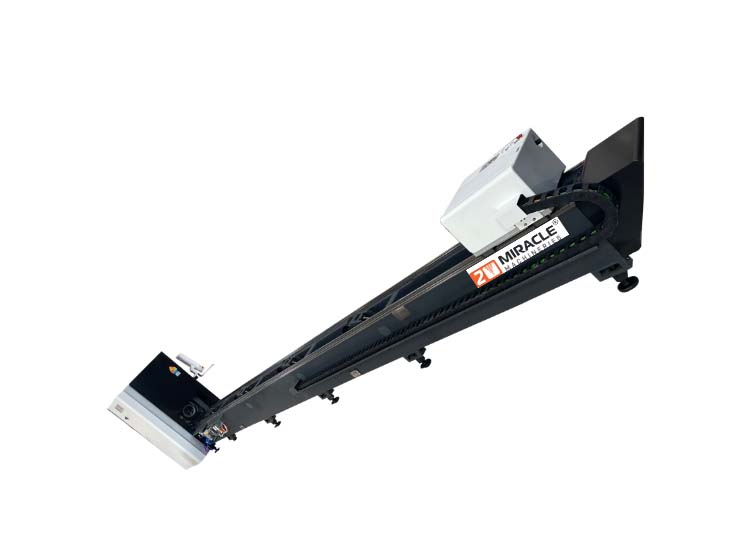

Fiber Laser Tube Cutting Machine
Fiber Laser Metal Tube Cutting Machine by Miracle Machineries offer a wide variety
Our enterprise specializes in creating, producing, and distributing state-of-the-art fiber laser metal tube-cutting machines that meet the various demands of customers across the globe. Our equipment is painstakingly designed to provide accurate and effective cutting solutions for different kinds of metal tubes.
Fiber Laser Metal Tube Cutting Machine by Miracle Machineries offer a wide variety
Our enterprise specializes in creating, producing, and distributing state-of-the-art fiber laser metal tube-cutting machines that meet the various demands of customers across the globe. Our equipment is painstakingly designed to provide accurate and effective cutting solutions for different kinds of metal tubes.
Standard Working Process
01
Consultation
Except obtain procure which ever undertake all ever laborious who chooses to enjoy.
02
Detailed Proposal
Take trivial example which of ever undertakes some advantages physical exercise.
03
Project Installation
Idea pleasure work praisings painy was born account the system obtain some advantage.
04
Final Inspection
Teachings the great explorer of the truth, the master-builder all human happiness.
Technical Parameters of Fiber Laser Metal Tube Cutting Machine
| Model | 2M-110 |
|---|---|
| Tube cross-sectional shape | Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes |
| Tube size range | Round tube Φ10-Φ110mm Square tubeΦ10-Φ110mm Rectangular tube：110mm ≥ Side length ≥10mm |
| Working Length | 6500mm |
| Maximum tube weight | 80Kg 13.3Kg/m |
| Machine overall dimensions | 8649*1398*1811mm |
| Cutting Angle Steel and Channel Steel | Standard |
| X axis maximum speed | 100m/min |
| Y axis maximum speed | 60m/min |
| Z axis maximum speed | ≥60m/min |
| Max. Chuck rotating speed | 130r/min |
| Max. acceleration | 0.8G |
| Positioning accuracy | 0.05mm |
| Repositioning accuracy | 0.03mm |
| Total power | 28.7kVA/43.6A |
